Exergy has built a reputation worldwide for delivering unsurpassed quality heat exchangers through engineering and manufacturing expertise

Exergy is the Leading Source of MINIATURE HEAT EXCHANGERS & Other Heat Transfer Products Since 1979

Harrington Industrial Plastics - Purex

Exergy Designs & Manufactures Heat Transfer Solutions for the Global Market

Exergy’s extensive engineering expertise, unique designs and manufacturing techniques allows it to provide the most compact heat exchangers. Exergy offers a comprehensive catalog of Shell and Tube heat exchangers, Tube-in-Tube heat exchangers and PUREX Point-of-Use (POU) WFI/PW dispensing systems constructed of 316L SS, Hastelloy, Inconel, Titanium and other alloys.

Known for high quality products, Exergy is the choice for companies worldwide in the pharmaceutical, biotech, sanitary, industrial and process industries for our off-the-shelf and custom designed products. Exergy’s goal is to continually exceed customers’ expectations for service, quality, and value.

Exergy Design Advantages:
  • Small, compact, and high performance
  • High temperature, high pressure, & corrosive environments
  • 316L SS, Hastelloy®, Inconel®, Titanium and other alloys
  • Sanitary models meet stringent requirements of Pharmaceutical industries
  • Custom designs to meet special customer requirements
  • Smallest shell & tube heat exchanger worldwide
The Harrington Difference
Providing over 60 years of exceptional service

Harrington is a leading Exergy distributor. Call our  toll-free number at 1-800-213-4528 and you will be connected to a live person – not a recording. You can also use the contact form below for any questions regarding our full line of Exergy products.

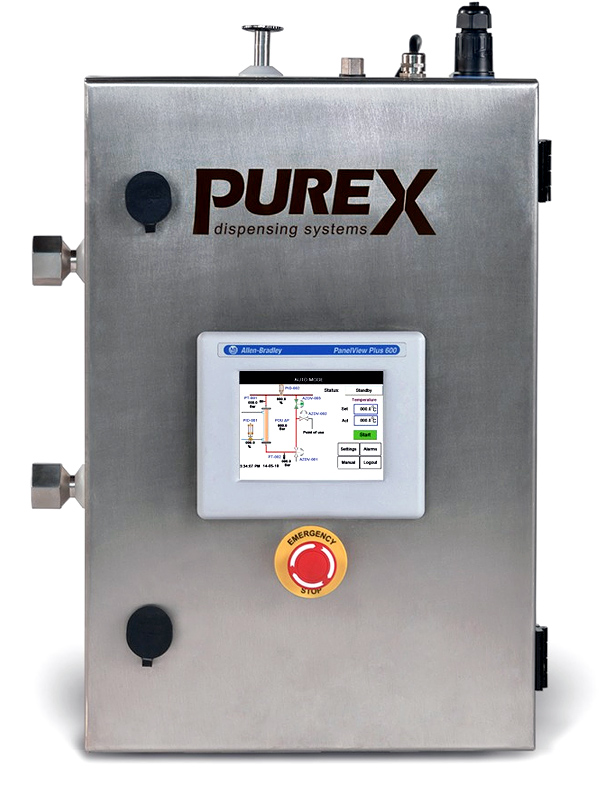

Point-Of-Use (POU) System

Exergy Point-Of-Use systems dispense instant, temperature controlled WFI or PW, and are designed to meet the high quality requirements and hygienic standards of the pharmaceutical industry. When not in use, a continuous flow of hot water (from the main loop) maintains sanitization. Exergy offers standard models using our compact, high performance heat exchangers for the most demanding conditions. Many features and options can be customized.

Harrington Industrial Plastics - Purex
Harrington Industrial Plastics - Purex

Benefits:

  • Instant cold or hot WFI or PW availability at POU
  • Continuous flow of hot water keeps it sanitized at all times
  • Automated or manual operation
  • PLC with touch screen HMI with many operating modes
  • Fully drainable on product side, with no dead legs
  • Easy to install, operate and maintain
  • CIP and SIP capable

Design Features:

  • Enclosed locking cabinet
  • Sanitary double tube sheet heat exchanger eliminates risk of cross contamination between product and working fluid
  • All product contact surfaces are passivated, less than 20 Ra and electropolish available
  • 316L stainless steel construction
  • Full quality documentation provided
  • ASME BPE Compliant

Typical Applications:

  • Cool WFI/PW from 80-85°C to 20-40°C
  • Water For Injection (WFI) systems
  • Purified Water (PW) systems

Sanitary Shell & Tube Heat Exchangers

Exergy sanitary shell & tube heat exchangers are designed to meet the high quality requirements and hygienic standards of the pharmaceutical industry. All product contact surfaces have a maximum surface finish of 20in (0.5m) Ra, and can be improved to 15in (0.4m) Ra or better with optional electropolishing. Available with single tubesheet or double tubesheet to eliminate risk of cross-contamination between the product and working fluids.

Exergy Heat Exchangers-Tube in tube

Performance Features:

  • Heat transfer rates to 5,000,000 BTU/hr (1465 kW)
  • Liquid flows to 250 GPM (946 LPM)
  • Pressures up to 1,500 psi (104 bar)

Design Features:

  • 316L SS, 1.4435, Hastelloy®, Inconel® and other alloys
  • Nickel brazed (no welds)
  • Fully drainable on tube side
  • ASME BPE sanitary fittings
  • ASME BPE compliant
  • Clean-in-place (CIP)
  • Available with or without electropolish
  • Material & process certifications included
  • Available with single or double tubesheet

Typical Applications:

  • Point of use cooling or heating
  • Water for Injection (WFI)
  • Clean steam condensing and sub-cooling
  • Temperature control of high purity product
  • Product sampling

Sanitary Tube-in-Tube Heat Exchangers

Exergy Sanitary tube-in-tube heat exchangers consist of two tubes, an inner and an outer coiled together. This unique, compact design prevents thermal fatigue, increases efficiency and reduces the overall size. It is ideal for high temperature, high pressure and low flow applications.

These sanitary models are designed to meet the high quality requirements and hygienic standards of the pharmaceutical industry. All product contact surfaces have a maximum surface finish of 20µin (0.5µm) Ra, and can be improved to 15µin (0.38µm) Ra or better with optional electropolishing. Our unique design ensures there is no risk of cross-contamination between the product and working fluids.

Exergy Heat Exchangers-Tube in tube

Performance Features:

  • Heat transfer rates to 100,000 BTU/hr (29 kW)
  • Liquid flows to 10 GPM (38 LPM)
  • Pressures up to 4,500 psi (310 bar)

Sanitary Features:

  • Available with or without electropolish
  • No risk of cross-contamination between fluids
  • Sanitary fittings ASME BPE
  • Material & process certifications included
  • Fully drainable on product side
  • Clean-in-place (CIP)
  • No dead spots or crevices
  • ASME BPE Compliant

Design Features:

  • 316L SS, Hastelloy®, Inconel®, Titanium and other alloys
  • NPT, tube stubs, or custom fittings
  • Thick walled seamless tube
  • Integrated threaded holes for mounting
  • Highly resistant to thermal stress
  • All welded construction
  • Maintenance free

Typical Applications:

  • High temperature, high pressure, low flow
  • Multi-phase fluids & slurries
  • High thermal stress
  • Steam condensing
  • Seal cooling
  • Liquid/Gas
  • Sampling
  • WFI

Shell & Tube Heat Exchangers

Exergy miniature shell & tube heat exchangers provide maximum performance in a minimum package. A unique compact arrangement of small diameter tubes results in a lightweight, cost effective design that is easily installed in space constrained areas.

Exergy Heat Exchangers-Tube in tube

Performance Features:

  • Large heat transfer area in a small volume
  • Heat transfer rates to 5,000,000BTU/hr (1465 kW)
  • Liquid flows to 250 GPM (946 LPM)
  • Pressures up to 1,500 psi (104 bar)

Design Features:

  • 316L SS, 1.4435, Hastelloy®, Inconel®, Titanium and other alloys
  • Nickel brazed (no welds)
  • NPT, tube stub, or custom fittings
  • Mounting kits available
  • Every unit pressure tested
  • Maintenance free

Typical Applications:

  • Processing equipment
  • Condensing and evaporating
  • Regenerative heat transfer
  • Process fluid temperature control
  • Batch process cooling or heating
  • Cryogenic cooling
  • Sample cooling

Tube-in-Tube Heat Exchangers

Exergy LLC, tube-in-tube heat exchangers consist of two tubes, an inner and an outer coiled together. This unique, compact design prevents thermal fatigue, increases efficiency and reduces the overall size. It is ideal for high temperature, high pressure and low flow applications.

Exergy Heat Exchangers-Tube in tube

Performance Features:

  • Heat transfer rates to 100,000 BTU/hr (29 kW)
  • Liquid flows to 10 GPM (38 LPM)
  • Pressures up to 4,500 psi (310 bar)

Design Features:

  • 316L SS, Hastelloy®, Inconel®, Titanium and other alloys
  • NPT, tube stubs, or custom fittings
  • Thick walled seamless tube
  • Integrated threaded holes for mounting
  • Highly resistant to thermal stress
  • All welded construction
  • Maintenance free

Typical Applications:

  • High temperature, high pressure, low flow
  • Multi-phase fluids & slurries
  • High thermal stress
  • Steam condensing
  • Seal cooling
  • Liquid/Gas
  • Sampling
  • WFI

Custom Heat Transfer Products

Exergy specializes in providing the highest heat exchanger performance in the most compact, cost effective package. If our standard products do not meet your requirements, we will apply our extensive experience and proprietary methods to create a custom design.

Our capabilities range from minor modifications to completely new designs, regardless of quantity. Contact us to have your requirements evaluated by an Applications Engineer.

Exergy Heat Exchangers

Materials of Construction:

  • Stainless Steel
  • Hastelloy®
  • Inconel®
  • Titanium
  • Other alloys

Special Processing:

  • Passivation
  • Electropolish
  • Corrosion resistant coating
  • Specialty cleaning processes

Design Modifications:

  • Increased heat transfer or fluid flow rates
  • Expanded pressure or temperature limits
  • Assembly or integration of other components
  • Integrated custom fittings or thread types
  • Special tube size or count
  • Special baffle configurations
  • Special shell diameter and length
  • Additional inlet or outlet ports
  • Rotated shell fittings
