Flowline enables industrial manufacturers, chemical distributors, municipalities and energy or food providers to safely and efficiently manage their contained liquid and solid assets.
Flowline has over Thirty years of proven success in level measurement and control applications.
Harrington takes pride in being a distributor of Flowline, a renowned leader in non-contact ultrasonic and radar level sensors. Flowline offers a comprehensive range of reliable and cost-effective solutions for measuring and controlling substances such as chemicals, water, oil, wastewater, ultrapure liquids, and dry solids. Their advanced level sensing technologies, which include pulse radar, guided wave, and ultrasonic sensors, ensure precise and dependable measurements, making them a trusted choice across industries.
One of Flowline’s standout features is its user-friendly design, featuring intuitive interfaces and powerful WebCal configuration software. This seamless integration allows for easy setup and operation of their level sensors, enhancing the user experience.
With a commitment to excellence, Flowline stands as the epitome of simplicity in level measurement, offering cutting-edge technology and unparalleled support to meet the diverse demands of modern industries. As a distributor of Flowline products, Harrington is pleased to provide customers with access to these innovative solutions, contributing to efficient and reliable operations across various sectors.
The Harrington Difference
Providing over 60 years of exceptional service
Harrington is an Flowline distributor of various level measurement sensor products. Call our toll-free number at 1-800-213-4528 and you will be connected to a live person – not a recording. You can also use the contact form below for any questions regarding our line of Flowline products.

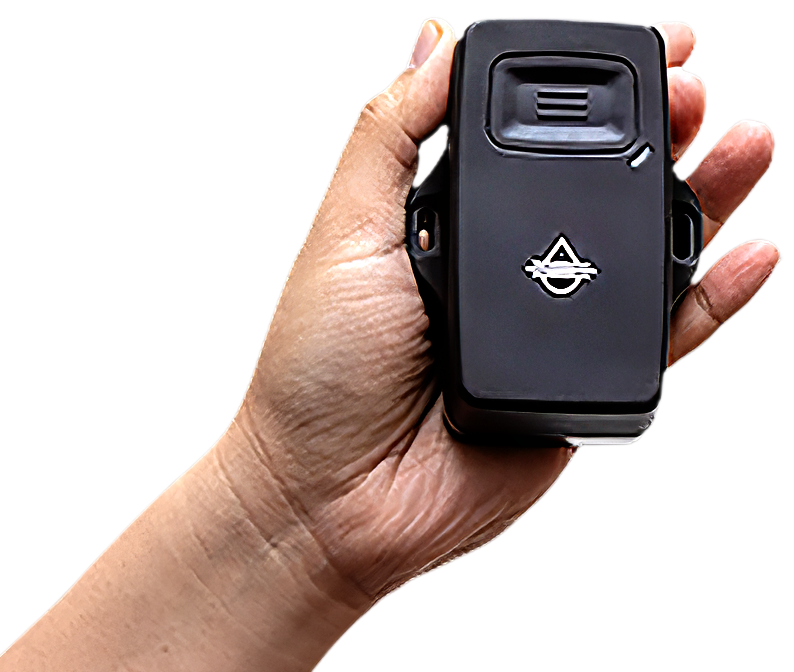

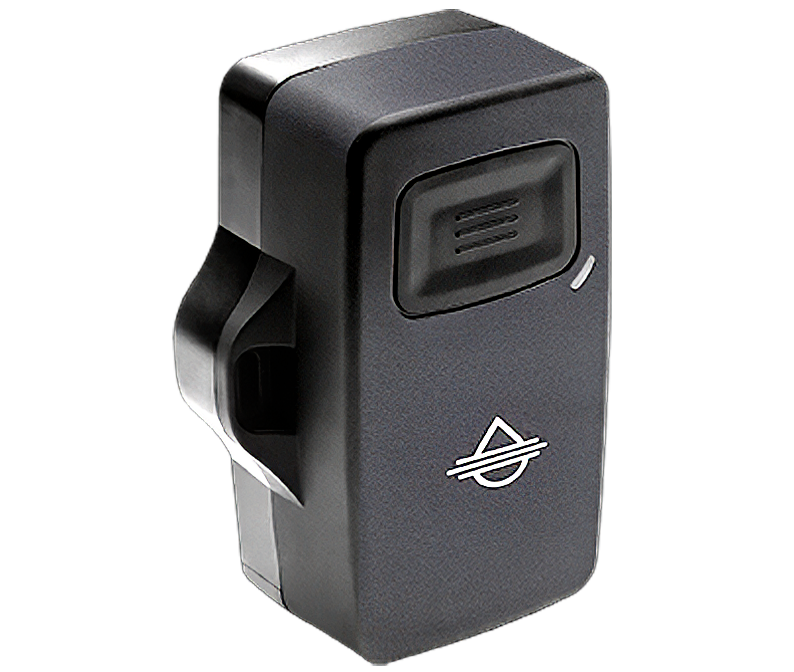

LevelHub® Remote Level Monitor
The LevelHub HB01 is a wireless, battery-powered gateway that provides remote monitoring for tanks and silos. Paired with up to four EchoBeam 80-GHz radar sensors, it collects and transmits level data over LTE-M to Flowline’s secure cloud, where information can be viewed through the LevelTap mobile app or LevelHub.io. Users can configure scan intervals, alerts, permissions, and data exports for complete visibility of remote assets.
Benefits
Improve delivery efficiency, prevent runouts or overfills, and give teams real-time visibility into tank inventory. LevelHub makes remote monitoring simple — install, configure, and start receiving level data in minutes.
Key Features
- Wireless monitoring for up to four EchoBeam radar sensors
- LTE-M/NB-IoT transmission with GPS/GNSS location
- Configure via LevelTap App (iOS/Android) or LevelHub.io
- Adjustable scan and transmit intervals
- SMS, email, and push notification alerts
- Rugged IP67 industrial enclosure
- Up to an 8-year lithium battery (dependent on settings)
Technical Overview
- Wireless Communication: LTE-M / NB-IoT, BLE 5
- Networks: T-Mobile (US/Canada), Vodafone (EU/UK)
- Location Services: GPS, GLONASS, Galileo, BeiDou
- Power: 3.6V Li-Mn battery, up to 8-year life
- Data Export: CSV, JSON, API
- Operating Temp: -22° to 176°F (-30° to 80°C)
- Enclosure: IP67 PBT, 8 oz
- Compliance: FCC, CE, RoHS, REACH

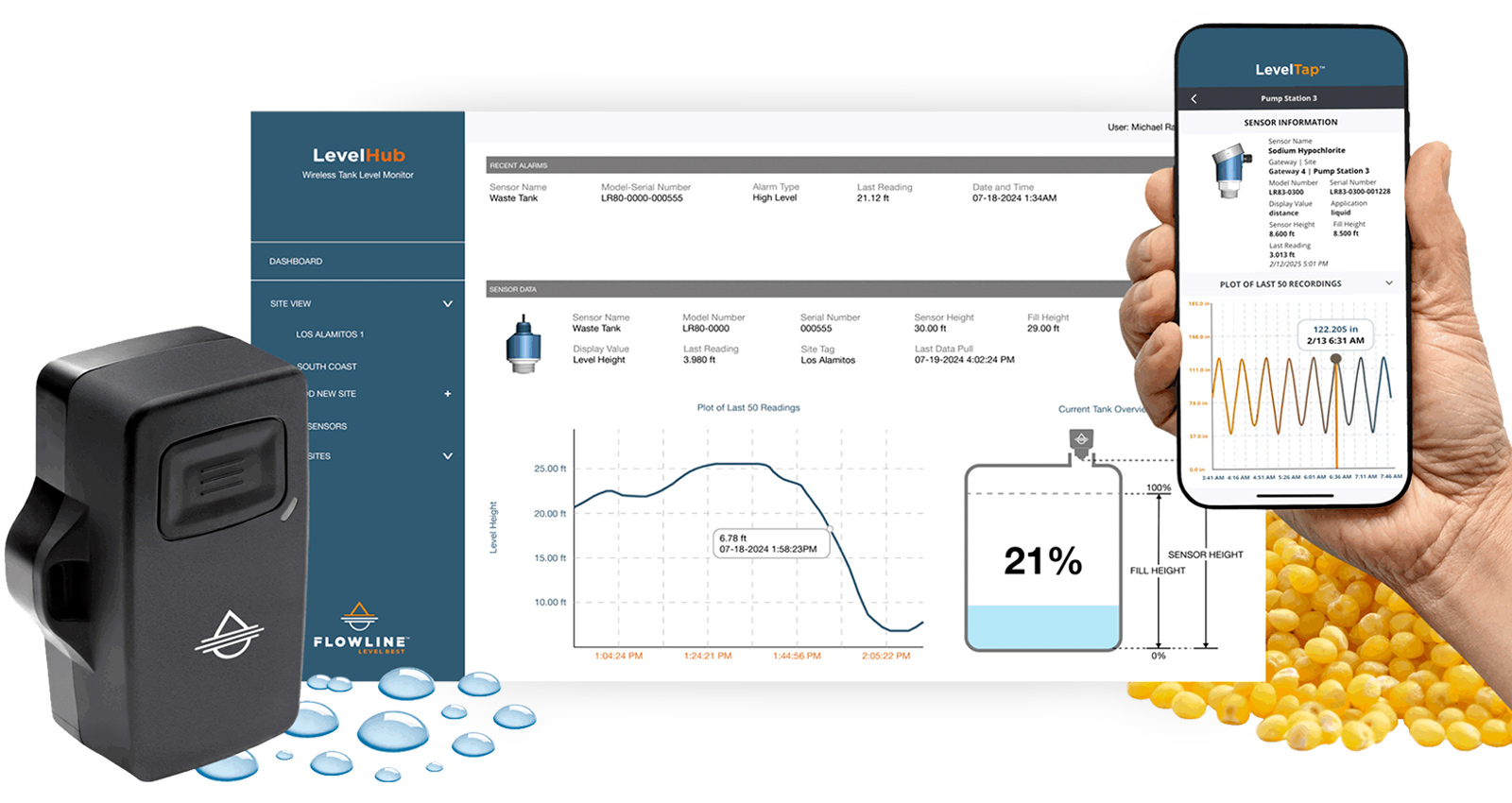

Reliable Remote Level Tracking
The LevelHub wireless, battery-powered monitoring gateway allows users to record, transmit, and view tank or silo level data from a phone or browser. It also sends high and low level alerts to keep teams informed and systems running smoothly.
Easy Setup
Download the LevelTap App, pair your EchoBeam sensors, scan the LevelHub QR code, activate the data subscription, and assign sensors — remote monitoring is up and running within minutes.

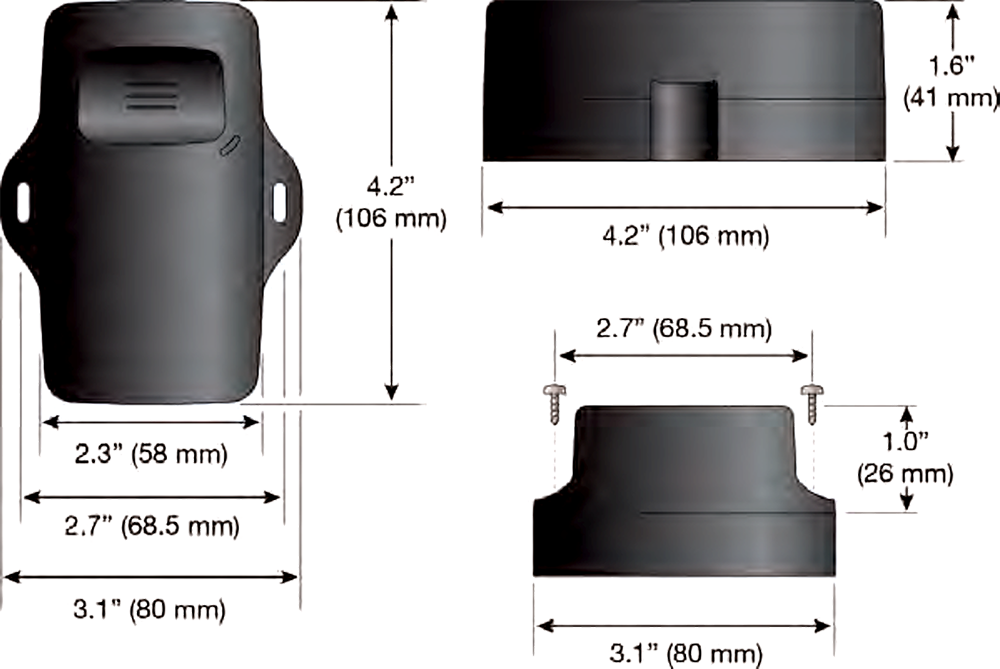

Dimensions

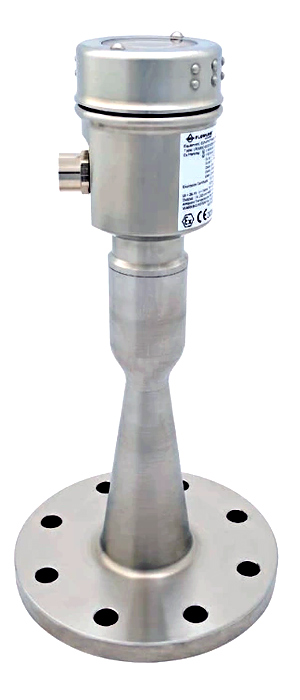

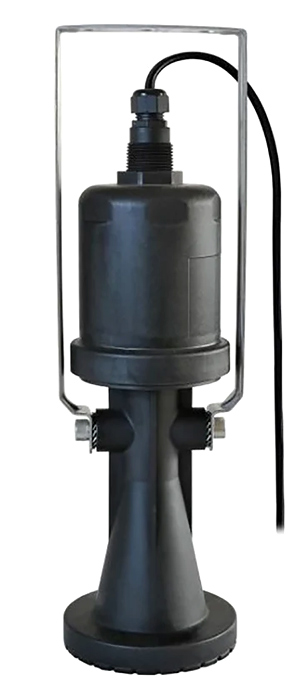

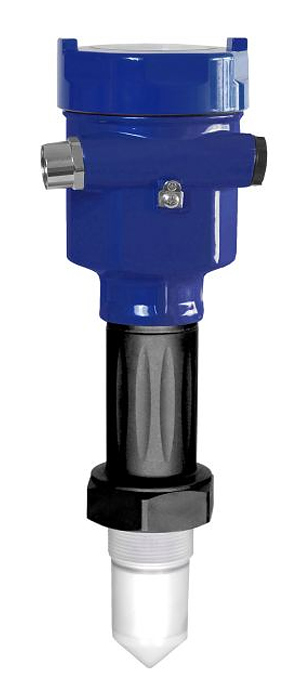

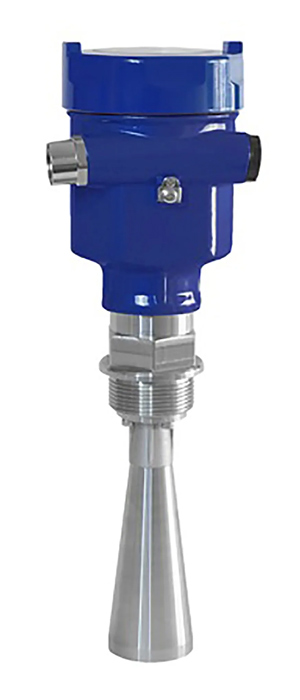

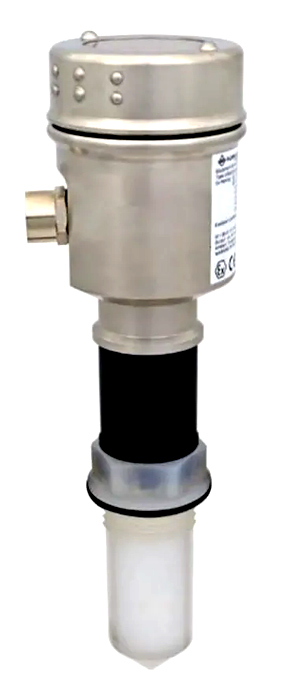

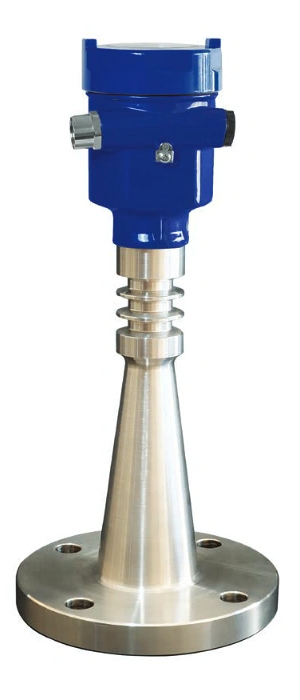

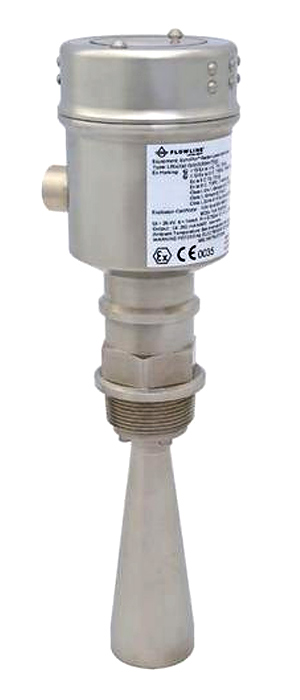

EchoPulse® and EchoPro® Radar Liquid Level Transmitters
Harrington’s commitment to exceptional customer service begins with its relationships. We partner with the industry’s top-tier manufacturers to ensure our customers receive the best-in-class products, keeping their process systems running smoothly.
We are excited to share the EchoPulse® and EchoPro® Radar Liquid Level Transmitters from our supplier partner, Flowline. These rugged non-contact sensors were designed to suit best challenging bulk tank, process, or sump applications.
EchoPulse (general purpose with 4-20 signal output) & EchoPro (hazardous with HART & 4-20 signal output) address process measurement applications where vapor, temperature, pressure, and/or foam are present that will attenuate the signal responses and/or distort the measurement performance of other level technologies, i.e., ultrasonic, hydrostatic pressure, floats, capacitance and/or conductance.
The difference is in the technology – the radar sensor emits a 26 GHz or 6.3 GHz RF pulse from the base of the antenna. This pulse travels through the free space, reflecting against the liquid dielectric materials and returns back to the antenna. The sensor then measures the pulse time of flight and translates it into liquid level distance. Measurement by pulse radar is unaffected by process conditions that cause other sensing technologies to fail or require ongoing maintenance.
Are you looking for a program to easily configure and test compatible Flowline level sensors to their measurement and control requirements? Look no further, WebCal® configuration software is your go-to for fast and easy level sensor setup.
Use the form above and ask your Harrington representative for more information today!
Flowline Echosonic II Ultrasonic Level Transmitter
The Flowline Echosonic II ultrasonic level transmitter is a general purpose two-wire ultrasonic level transmitter that provides non-contact measurement for liquid levels ranging from as little as 4″ up to 32.8′ (10cm to 10m). The Flowline Echosonic II GP ultrasonic level transmitter and is well suited for challenging ultrapure, corrosive, slurry, or waste liquids in atmospheric bulk storage, day tank, waste sump, process vessel, IBC tote, 55-gallon drum, and waste sump applications.
Changing the Flowline Echosonic II ultrasonic level transmitter from its factory settings is simple with Flowline’s WebCal software, an innovative PC user interface that provides fast and accurate configuration. An optional Fob USB Interface tool is required (Fobs are universal and can configure multiple transmitters).

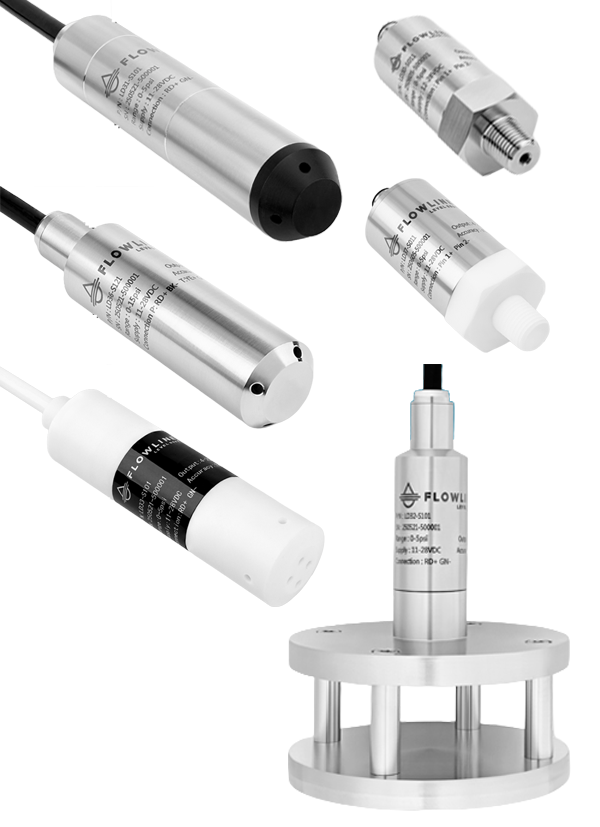

Flowline DeltaSpan® Hydrostatic Level Transmitters
Flowline DeltaSpan transmitters provide reliable continuous level measurement for clean, dirty, and corrosive liquids. Designed for tanks, wells, and lift stations, each model converts liquid head pressure into a stable 4–20 mA output with built-in temperature compensation and surge protection. Submersible and external-mount options support a wide range of industrial and chemical applications.
DeltaSpan External-Mount Models (LD30 & LD37)
LD30 – General Purpose
A stainless-steel threaded level transmitter for clean liquids in metal tanks. Installs through a 1/4″ NPT port and measures up to 34.65 ft of water column. Ideal for process water, metal day tanks, and skid systems.

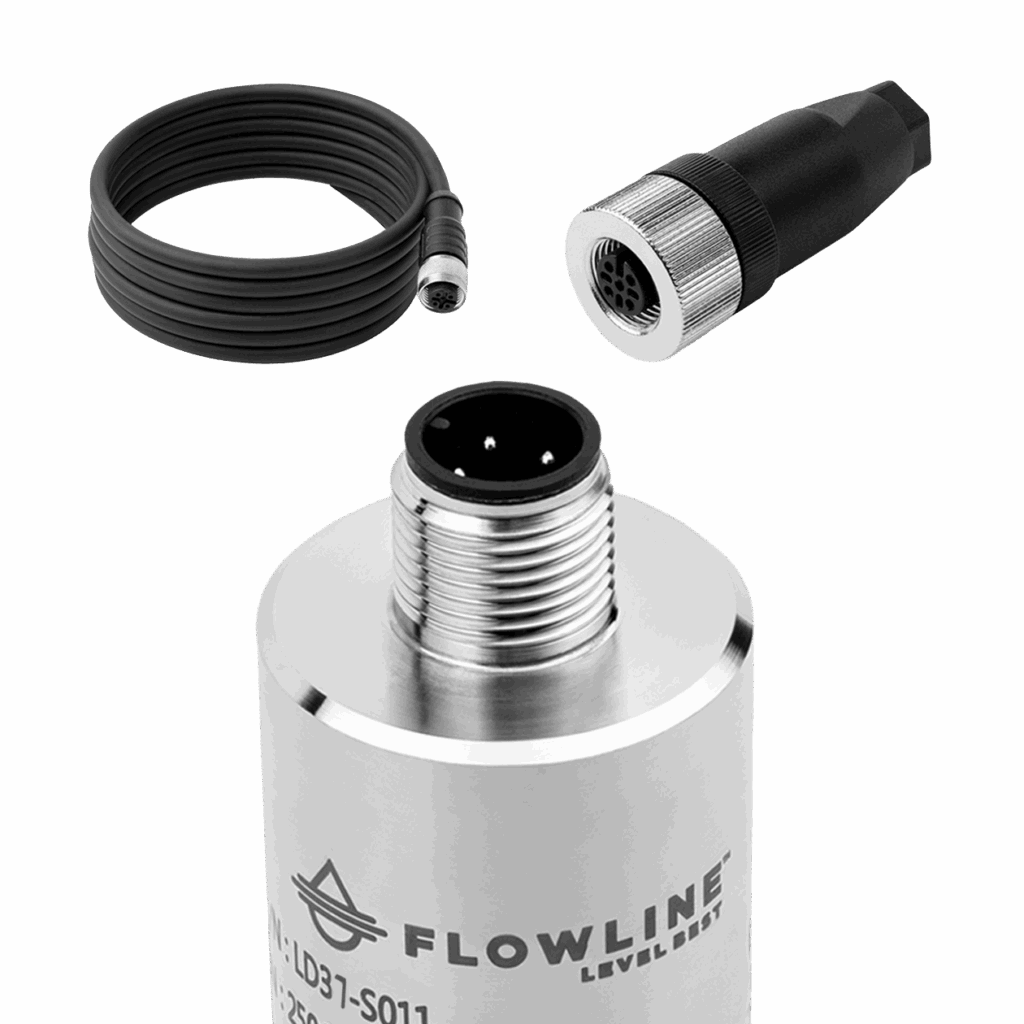

LD37 – Anti-Corrosion
Offers a PTFE-faced sensor for acidic and caustic chemicals. Measures up to 11.55 ft and installs easily through a 1/4″ NPT port. A practical choice for chemical feed and corrosion-prone metal tanks.
DeltaSpan Submersible Models (LD31, LD32 & LD33)
LD31 – Clean Liquid Submersible
A 316 stainless-steel submersible transmitter for wells, reservoirs, and clean storage tanks. Measures up to 34.65 ft with a polyurethane vented cable.
LD32 – Wastewater Submersible
Built for lift stations, sumps, and dirty water. Features a clog-resistant diaphragm and rugged stainless-steel construction for reliable performance in debris-laden liquids.
LD33 – Chemical-Resistant Submersible
Constructed from PTFE with an FEP-jacketed cable, making it ideal for aggressive acids, caustics, and corrosive chemical tanks.
DeltaSpan LD36 – Level + Temperature Combo
A dual-output submersible transmitter measuring both level (up to 34.65 ft) and temperature. Suitable for process water and chemical tanks requiring two parameters through one probe.
Compatible Displays & Controllers
- DataLoop Indicator – Loop-powered 4–20 mA display with optional relays.
- DataView Controller – 4-relay or 2-relay controller for local alarms or pump control.
Flowline AX1X Thermo-Flo Flow Controller
The Flowline AX1X Thermo-Flo Flow Controller provides reliable no or low-flow detection of relatively clean non-coating media with a 16A compact flow controller for pump or process protection. The optional flash alarm brings attention to low-flow alarm conditions. Liquid examples includes water and sulfuric acid.
A common problem with metering pumps in flow applications is the characteristic of the output flow. The pulsating flow makes it difficult for flow switches to get an accurate and consistent flow rate because they are not able to see a reliable flow output. The FlowlinePulsePoint fitting is designed to stabilize the pulsing flow for the Thermo-Flo flow switch. The cylindrical chamber creates a mini-vortex that creates a relatively constant flow. The Thermo-Flo flow switch will be able to read the flow and provide an accurate and low-cost flow switch. The Flowline Pulse Point fitting is ideal for use in metering pump applications.
Flowline EchoBeam® — Advancing Precision with 80GHz Frequency for Unparalleled Level Detection
EchoBeam, an advanced non-contact radar transmitter, seamlessly combines radar’s high-performance attributes with the cost-effectiveness of ultrasonic technology. Operating at 80 GHz, or W-Band, EchoBeam utilizes Frequency-Modulated Continuous Wave (FMCW) radar technology within the 75 to 85 GHz frequency range. This innovative approach significantly enhances the Signal-to-noise ratio compared to traditional Pulsed Wave radar transmitters, distinguishing EchoBeam by the absence of a dead band—a characteristic feature of FMCW radar that sets it apart from pulse radar systems.
EchoBeam demonstrates remarkable resilience, remaining unaffected by elements like foam, vapors, or fumes that typically challenge ultrasonic counterparts. In essence, EchoBeam represents a cutting-edge solution, seamlessly integrating precision, reliability, and versatility into a single radar transmitter.
Operating at 80 GHz, EchoBeam excels in providing exceptional accuracy and resolution, making it the ideal choice for applications that demand precision. This frequency not only ensures high precision but also has the capability to penetrate non-metallic materials, facilitating level detection without the need for tank intrusion. Additionally, the 80GHz design effectively eliminates the dead band, contributing to enhanced performance across various scenarios.
It’s essential to note that as the liquid or solid level approaches the sensor, there may be a reduction in accuracy, resulting in a coarser measurement. Despite this consideration, EchoBeam’s 80GHz frequency remains a versatile solution for applications requiring both precision and non-intrusive level detection.
- Easy to Configure – EchoBeam uses the LevelTap App that connects your Smartphone directly to the device.
- Small Packaging – allows for installation in smaller tanks plus retrofitting from older technologies is easy.
- Small Dead Band – allows for installation in smaller tanks with the ability to fill to a greater volume in the tank (just don’t touch the antenna).
- Improved Resolution – not only is accuracy improved, but filtering out false targets is easier for EchoBeam.
- Application Friendly – the breadth of applications is greater than any other technology or previous releases.
- Works on Liquids or Solids – Note: the maximum range for solids is approximately ½ the max. range of liquids.
The LR80 general purpose 80 GHz radar sensor provides continuous level measurement up to 32.8’ (10m) for liquids or 16.4’ (5m) for solids with a 4-20 mA signal output. The sensor measures liquid and solids media with a dielectric constant value ≥ 1.6, such as water, chemical or petroleum-based liquids, and pellet, grain, powder, or aggregate solids. Select this sensor for tank, sump, lift station, weir, canal, reservoir, bin, conveyor, or transfer station applications
The LR81 general purpose 80 GHz radar sensor provides continuous level measurement up to 98.4’ (30m) for liquids or 49.2’ (15m) for solids, with a 4-20 mA with HART, Modbus or SDI-12 signal output. The sensor measures liquid and solids media with a dielectric constant value ≥ 1.6, such as water, chemical or petroleum-based liquids, and pellet, grain, powder or aggregate solids. Select this sensor for tank, sump, lift station, weir, canal, reservoir, silo, bin, conveyor, transfer station or stockpile applications.
The LR83 general purpose 80 GHz radar sensor provides continuous level measurement up to 98.4’ (30m) for liquids or 49.2’ (15m) for solids, with a 4-20 mA with HART or Modbus signal output. The sensor measures liquid and solids media with a dielectric constant value ≥ 1.6, such as water, chemical or petroleum-based liquids, and pellet, grain, powder, or aggregate solids. Select this sensor for tank, sump, weir, canal, reservoir, silo, bin, conveyor or stockpile applications.
The LR85 general purpose 80 GHz radar sensor provides continuous level measurement up to 196.8’ (60m) for solids or 393.7’ (120m) for liquids, with a 4-20 mA with HART or Modbus signal output. The sensor measures solids and liquid media with a dielectric constant value ≥ 1.6, such as pellet, grain, powder, or aggregate solids, and water, chemical or petroleum-based liquids. Select this sensor for tall dusty silos and bunkers or difficult liquid process applications.
