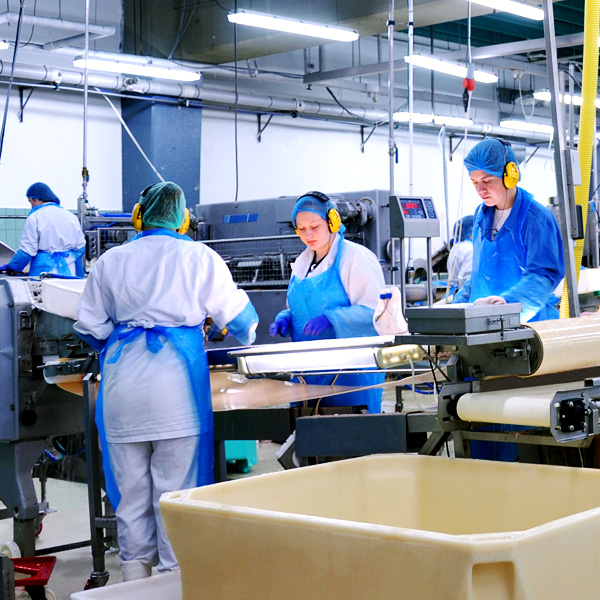

Solutions for the Food Processing Industry
Pure Group
GEA Tuchenhagen Product
Harrington is proud to represent the GEA Tuchenhagen product. Whether you are processing milk, beer, beverages, pasty food, pharmaceutical or chemical products, what counts is the quality of the final product and the efficiency of the production line. Harrington and GEA provide the product and knowledge to accomplish your goals. For GEA Tuchenhagen spares and components contact (GEA@hipco.com) or (909) 597-8641. Click here for details
3A Sanitary Pressure Transmitter
WIKA S-103A pressure transmitters meet 3A sanitary criteria for pressure and level measurement in the food, pharmaceutical, cosmetic, and beverage industries. They feature 0.25% accuracy, rugged stainless steel construction, and a wide operating temperature range.
The 316 stainless steel flush diaphragm minimizes product buildup. The all welded chemical seal system includes food grade liquid fill and is designed for “clean in place” (CIP) and “sterilize in place” (SIP) maintenance procedures. The transmitters are available with industrial standard 1-1/2” or 2” tri-clamp connections. The S-10.3A.C is designed for use with media temperatures to 350°F (177°C).
Each transmitter undergoes extensive quality control testing and calibration. The printed circuit boards use state-of-the-art surface mount technology and are potted in silicone gel for protection against mechanical shock, vibration, and moisture. Each transmitter is temperature compensated to assure accuracy and long term stability when exposed to severe ambient temperature variations.
- Meets 3A sanitary criteria for food and pharmaceutical applications
- Available with 1-1/2” or 2” tri-clamp connections
- Standard ranges available from stock
- 4-20 mA 2-wire output signal, others available
- Available with an integral cooling extension for high temperature applications
- Stainless steel case and wetted parts
Hytrex Depth Filter Cartridges
- Retains contaminants throughout entire cross section of the filter
- True depth filter; uses graded density that allows larger particles to be trapped near the surface and smaller particles to be trapped near the center
- The positive weld assures bypass-proof performance and structural integrity without adhesives or additives, maintaining cartridge purity
- All adapters—except elastomeric gasket—comply with FDA requirements for food and beverage contact.
- Eight standard micron ratings: 1, 3, 5, 10, 20, 30, 50, 75
- Standard diameters (inside/outside diameter given) : GX series, 1″x 2-1/2″ LD series 1″ x 4-1/2″
- Continuous manufacturing process allows for custom filter lengths from 1-1/2″ to 50″
- End adapters are thermally welded to the pure polypropylene filter
- Aquatrex-LD (large diameter) filters have three-to-eight times greater dirt-holding capacity and life
- Constructed of pure polypropylene
Sani-Tech Rigid Piping
Typical applications include pharmaceutical, biotechnology, D.I. water, semiconductor, and food/beverage industries.
- Virtually crevice-free sanitary connections for polyvinylidene fluoride (PVDF) and polypropylene tubing
- Connection surface finish of 5 Ra or better
- Minimizes particulate accumulation and contamination; reduces the potential for biofilms and bacterial adhesion
- Completely cleanable; minimizes clean-in-place (CIP) cycle
- Can be used in systems meeting FDA, USDA, 3A, USP Class VI and NSF requirements
Platinum-Cured Braid-Reinforced Silicone Hose
- Bio-pharmaceutical grade
- High pressure rating
- Ultra-flexible
- Improved bend radius over wire-reinforced hose
- Autoclavable and sterilizable
- Temperature range from -80°F (62°C) to 500°F (260°C)
- Imparts no taste or odors
- Color striping available
- Available in 50 foot lengths
- Size range through 1” I.D.
High-Density Linear Polyethylene Tanks
- High-density liner polyethylene (HDLPE) black and natural white color – complies with FDA Regulation 177.1520 and National Sanitation Foundation (NSF) 61 standard
- Crosslinked high-density polyethylene (XPLE) black and natural white color
- Opaque white sodium hypochlorite resin #880059
- Sulfuric acid resin #880046
- Low-profile designs increase safety factors
- Available in a wide variety of styles, 30-3,400 gallons
- Horizontal products are available in specific gravities up to 1.9
- All materials are UV stabilized for long-term outdoor service
Signet – Series 700/7001 Vortex Flow Sensor
- Multiple end connection options for application versatility and system integrity.Vortex Flow Sensor
- PVC construction for chemical compatibility or high purity
- Injection-molded construction provides exceptional surface quality
- Simple push-button programming for easy configuration and system setup
- No moving parts for maintenance-free operation
- Proven flow technology for high accuracy and repeatability
- Frequency output – compatible with 8550 transmitter, 5500 monitor, 5600 batch controller, 5075 monitor, 8900 multi-parameter controller
